AMFOR® RO elements contain a new high-rejection reverse osmosis membrane capable of wide range of food and dairy applications, including those requiring 3A compliance. These elements are especial y effec-tive in dewatering or product concentration. The ful -fit configuration is optimal for cleaning and minimizing〃 dead spaces.〃 All components comply with FDA standards and are suitable for use in food processing applications.
Product specifications
Product | Active Areaft2(m2) | Applied Pressurepsig(bar) | Permeate Flow Rategpd(m3/d) | Stabilized SaltRejection (%) |
RO-3838FF/30 | 80(7.4) | 225(15.5) | 2300(8.7) | 99.5 |
RO-4040FF/30 | 85(7.9) | 225(15.5) | 2400(9.1) | 99.5 |
RO-8038FF/30 | 370(34.4) | 225(15.5) | 9800(37) | 99.5 |
RO-390FF/30 | 390(36) | 225(15.5) | 10800(41) | 99.5 |
Operation Limits
Maximum Operating Pressure ...................................................................................................................................600psi (41.0bar)
Maximum Operating Temperature ...................................................................................................................................... 113 (45℃)
pH Range, Continuous Operation ................................................................................................................................................ 3-10
pH Range, Short-Term Cleaning (Max.@50℃) ............................................................................................................................ 1-12
Maximum Feed water Turbidity .................................................................................................................................................. 1NTU
Maximum Feed Silt Density Index ..................................................................................................................................................... 5
Free Chlorine Tolerancec ................................................ ................................................................................................... < 0.1ppm

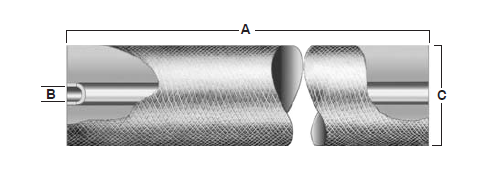

Product Type | Dimension--inches (mm) | ||
A | B | C | |
RO-3838FF/30 | 38.0(965.2) | 0.83(21.1) | 3.8(96) |
RO-4040FF/30 | 40.0(1016) | 0.75(19) | 3.9(99) |
RO-8038FF/30 | 38.0(965) | 1.125(29) | 7.9(201) |
RO-390FF/30 | 40.0(1016) | 1.125(29) | 7.9(201) |
1 inch=25.4mm
